زبری سنج – صافی سنج سندبلاست آمیتاری AMITTARI AR-131A
- برند: Amittari
- دستهبندی: تجهیزات بازرسی رنگ و پوشش
- ارسال توسط فروشگاه جوش آزما تجهیز

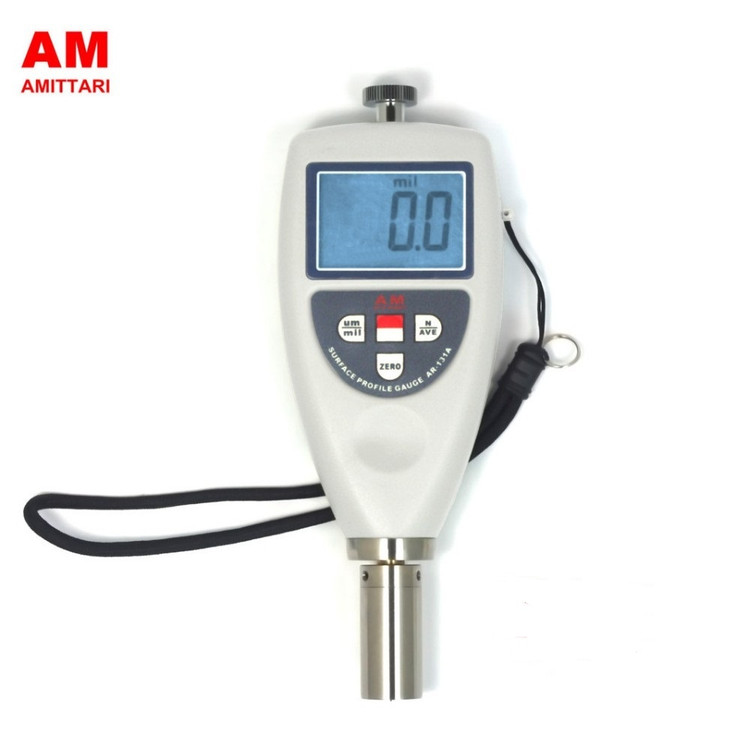

دستگاه زبری سنج یا صافی سنج آمیتاری AMITTARI یک دستگاه رافنس گیج یا زبری سنج سطح ساخت کشور چین میباشد که جهت استفاده در سطوح سندبلاست استفاده میگردد.
از مهمترین ویژگی های این زبری سنج سطح طراحی ارگونومی قسمت بالای دستگاه برای انجام یک تست مناسب و بدون لرزش میباشد و دیگر آنکه با دارا بودن صفحه بزرگ نمایش اعداد و دقت بسیار مناسب توانسته ویژگی های منحصر به فردی را نسبت به دستگاه های دیگر زبری سنج سندبلاست داشته باشد
Product Description Surface Profile Gauge
The Surface Profile Gauge used in Shot blasting industry, the printing industry, Spraying Anti Corrosion Industry, According to the selected measurement conditions are calculated from the corresponding parameters, in the liquid crystal display clearly shows all the measured parameters.
Product Feature
* Integrated design, small volume, light weight, simple structure, easy to use, Intuitive readings and automatic shutdown function.
* Public and imperial units converted, with the average computing power.
* With a mean value calculation, undervoltage alarm indicator function.
* Direct measurement of the surface peak-trough height.
* Use USB data output with connection PC.
* Provide Bluetooth data output choice.
Product Parameters
Resolution | 1 µm (0.1 mils) |
Range | 0 µm ~ 750µm/(0mils to 29.5mils) |
Measurement Speed | >30 (readings per minute) |
Accuracy | ±5% or ±5 µm ( whichever is the greater) |
Operating Temperature | 0~ 50°C |
Operating Humidity | <80%RH |
Size | 176x63x25 mm |
Power Supply | 2×1.5vAAA Um-4 Battery |
Weight | 310 g (Not including batteries) |

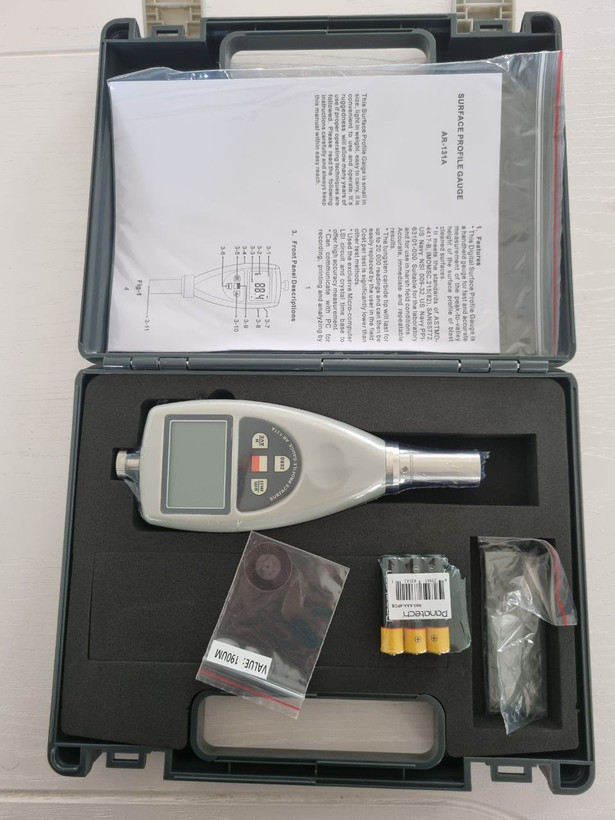

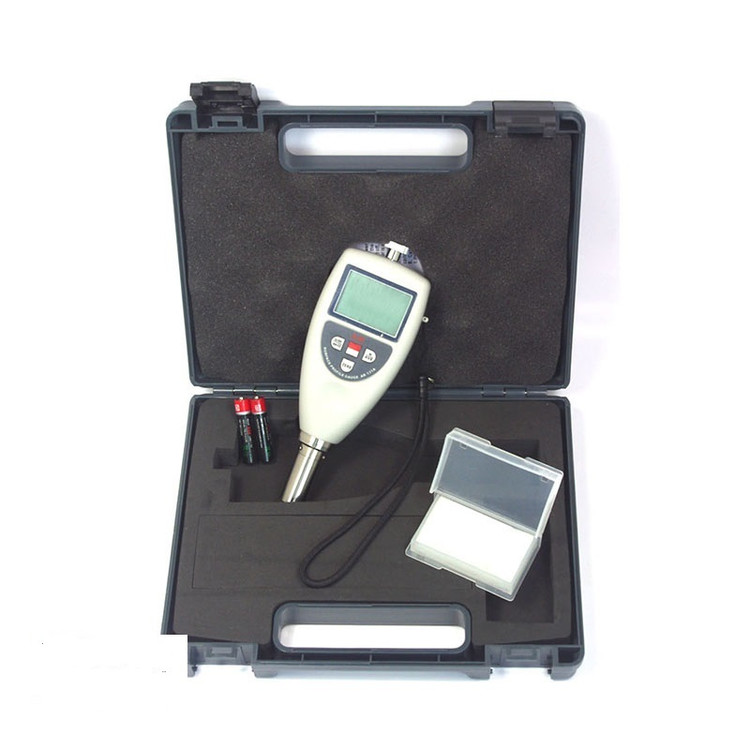

Product Accessories
Standard Accessories | Main Unit |
Zero Calibration Block | |

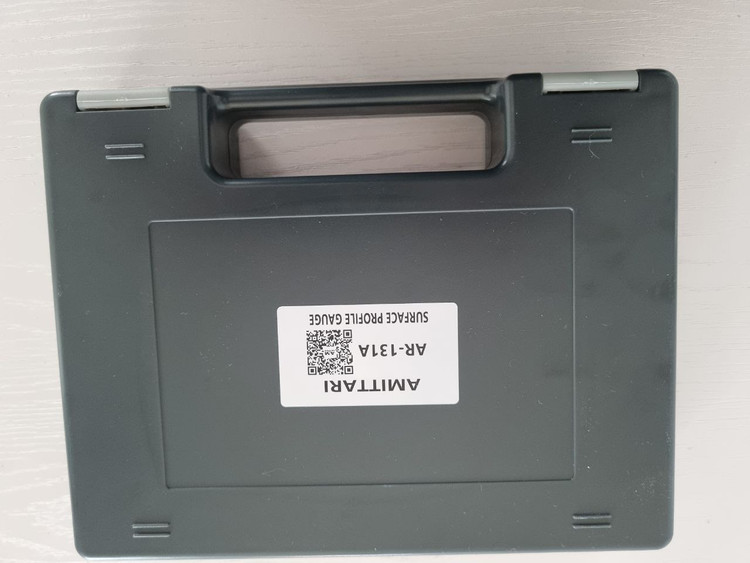

Carrying Case | |
Operation Manual | |
Optional Accessories | USB data output |
Bluetooth data output |
Buying Guide
When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.
The following three items are basic optional accessories choices
Standard Accessories+USB data output
Standard Accessories+Bluetooth data output
Bluetooth Accessories
Amittari instruments generally can be supplied with Bluetooth data output function ( except few instruments ) . As Bluetooth data output is included in optional accessories, not standard delivery,it needs to be indicated when choose 10 meters to 100 meters distance can be chosen.Please kindly contact with the customer-service worker if you need Bluetooth data output.
