Features

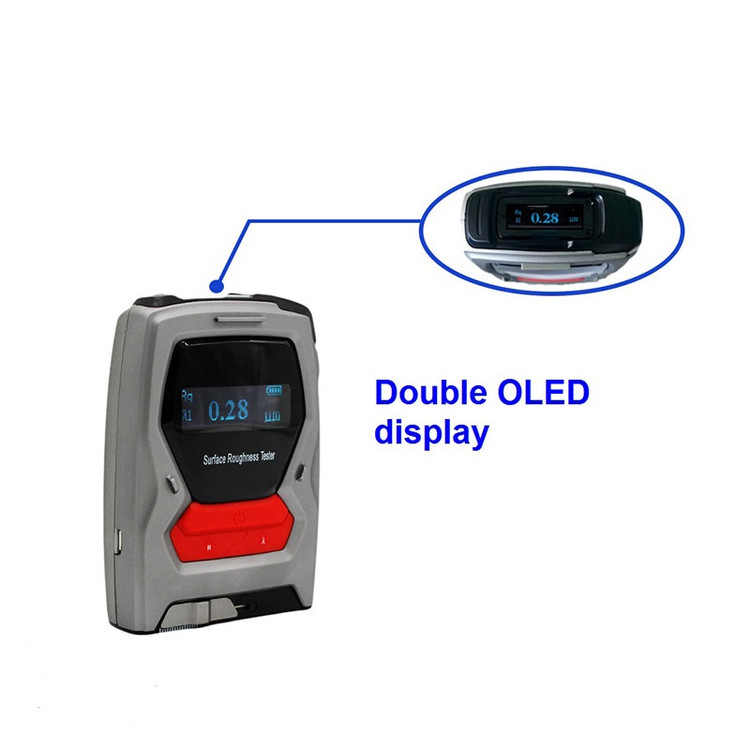

Dual OLED displays to suit your applications;
2 start keys ( the left key & the right key) to satisfy the different using habits;
Mobile app compatible to get the higher accuracy, convenient to be used in a small space
ARM processor to offer higher speed, low power consumption and fast accurate measurement.
Light weight of 150g, easy & convenient to use.
Main Technical Specifications |
Optional Parameter | Ra, Rz, Rq, Rt |
Measuring Range(μm) | Ra, Rq: 0.05 ~ 10.0; Rz, Rt: 0.1 ~ 50 |
Sampling Length(mm) | 0.25/ 0.80/ 2.5 |
Evaluation Length(mm) | 1.25/ 4.0/ 5.0 |
Running Length(mm) | 6 |
Display Accuracy | 0.01μm |
Display Deviation | ±(7-10)% |
Display Repeatability | <12% |
Stylus Radius | 10 μm±1 μm |
Static Contact Force | ≤ 0.016N |
Force Change Rate | ≤ 800N/m |
Sensor Lead Pressure | ≤ 0.5N |
Battery | 3.7V Lithium Rechargeable battery |
Dimensions in mm | 110×81×32 |
Weight | 150g |
Standard Delivery
