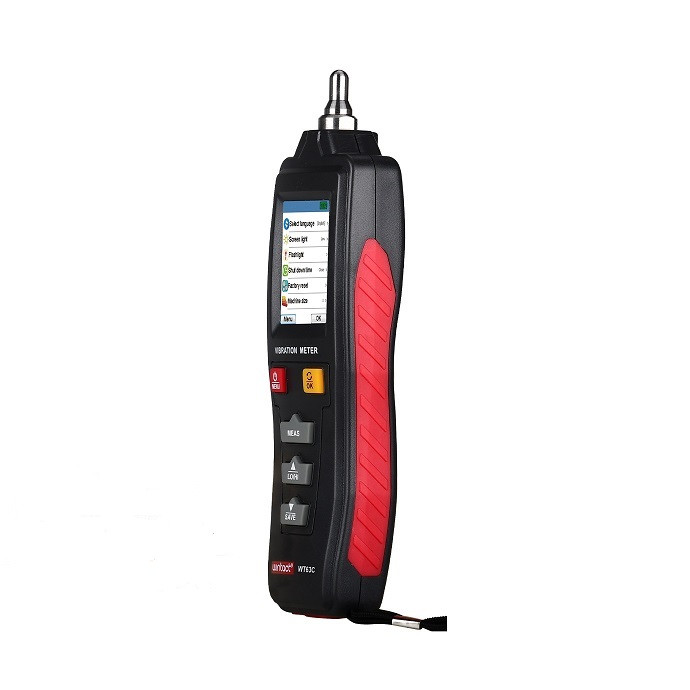

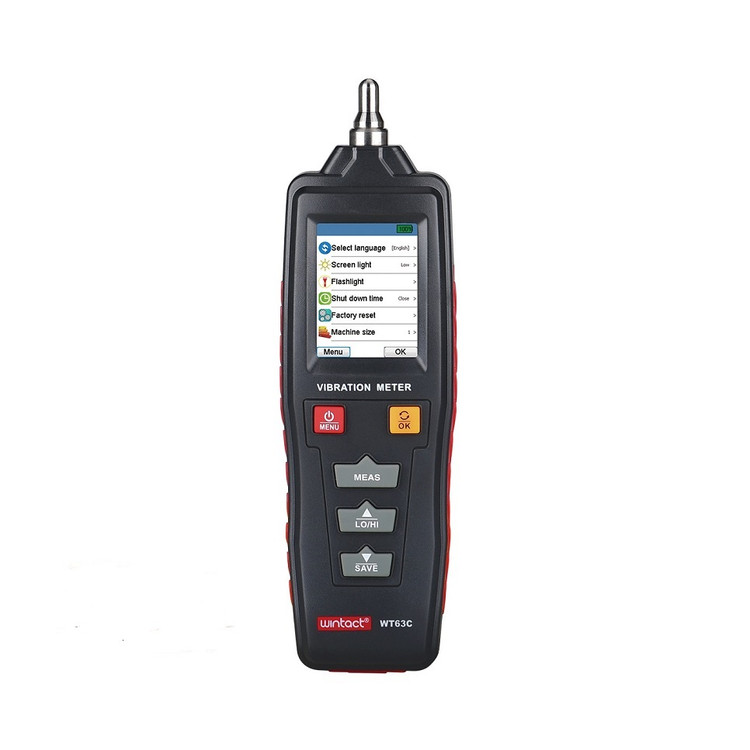

ارتعاش سنج یا لرزش سنج یا ویبره متر وینتکت مدل WT63C ( نمایندگی اصلی جوش آزما تجهیز)

Technical parameters

Technical indicators

Vibration acquisition

Piezoelectric ceramic accelerometer (shear type)

Measurement range

Acceleration：0.1~199.9m/s2 Velocity：0.1~199.9mm/s Displacement：0.001~1.999mm Frequency:0Hz~4KHz

Measurement accuracy

±10%

Frequency range of acceleration measurement

High frequency：1KHz～4KHz (HI)   Low frequency：10Hz～1KHz ( LO)

Frequency range of speed measurement

10Hz～1KHz (LO)

Frequency range of displacement measurement

10Hz～1KHz (LO)

Maximum groups of data storage

500 pieces (5 groups * 100 pieces/group)

Power supply

1.5V AAA battery*2

Temperature range for operation

0~40℃

Humidity range for operation

30~90%RH

Size

180x54x30mm

Weight

>150g(with batteries)
