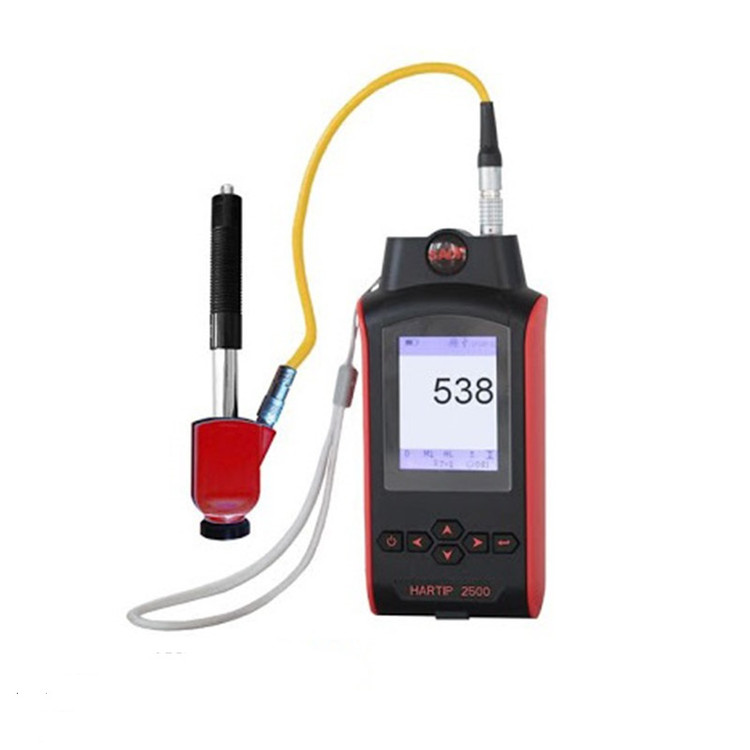

دستگاه سختی سنج پرتابل فلزات مدل HARTIP 2500

برند:Sino age
1 ساله
شناسه کالا HARTIP 2500

86,000,000 6%

80,000,000
توضیحات

Advantages

›› Patent dual- coil technology
›› Equipped with digital probes only
›› Cost- effec tive with reading probe (optional)
›› High repeatability accuracy: +/-2 HL (or 0.3% @HL800)
›› High linear accuracy for any angles
›› TFT color display
›› Auto compensate error for different impac t direc tion
›› Powered by AA batter y or USB power supply
›› The tester can be attrac ted to the workpiece with magnetic base (optional)
›› Statistics value can be calculated automatically
›› Up to 10 kinds of menu language
›› Data managing sof tware on PC
›› Power on/off automatically or manually

Specification



Principle Leeb hardness measurement
Accuracy / Repeatability ±0.3% @ HL=800 / ±2HL
Display High contrast color TFT 240 x 320
Hardness scale HL/HRC/HRB/HB/HV/HS/HRA/σb
Measuring range

HL100-960 / HRC0.9-79.2 / HRB1.2-140 / HB1-1878



/ HV1-1698 / HS0.5-128 / HRA7-88.5 / σb(rm)24-6599N/mm2
Probe

Digital probe D/ C/DC/D+15/DL/E



Wireless probe D C/DC/D+15/DL/E (optional), Reading probe D (optional)
Materials and conversion curves 11 common metal materials, 75 curves
Memory 999 data 999 data
Statistics function Average / Max. / Min. / S. value
Re-calibration Allowed by user
Indicator Low battery
Language,

En g l i s h , S i m p l i f i e d Chinese, Trad i tiona l Chinese, Russian



, Korean, Fre nch , Italian , German, Turkish,  Spanish
Interface USB / Bluetooth (optional) USB / Bluetooth (optional)
Power on/off Auto / Manual
Power supply AA alkaline battery / USB power supply
Working environment -20°C~+70°C
Dimension (mm) 1 145x70x30
Net weight (g) 145
Standards Conforming to ASTM A956, DIN 50156, GB/T 17394-1998
