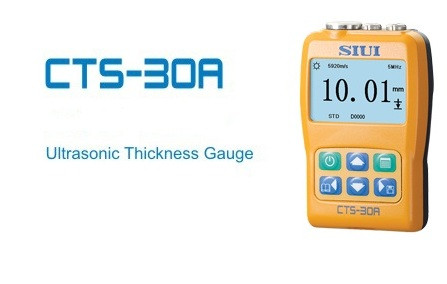

ضخامت سنج التراسونیک فلزات و نافلزات مدل CTS-30A ساخت کمپانی معروف SIUI

 با قابلیت اندازه گیری 0.8mm تا 300mm

– قابلیت اندازه گیری سرعت صوت در مواد

– صفحه نمایش بزرگ

– قابلیت ذخیره اطلاعات و انتقال به کامپیوتر

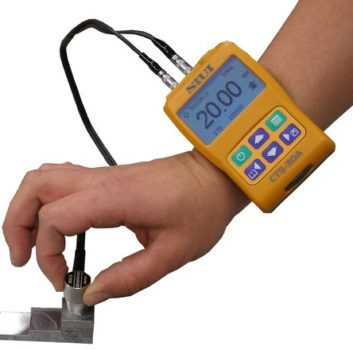

The SIUI CTS-30A / CTS-30B Ultrasonic Thickness Gauge, adopts micro-processor technology and advanced manufacture process design, can do measurement of thickness and acoustic velocity on metal and many materials based on ultrasound measurement principle.



• Mono LCD (with Back light), 128 x 64 pixels

• Measurement Range: 0.8mm-300mm/400mm (steel)

• Measurement Accuracy: 0.01mm/0.1mm

• Various Measurement Modes available: Minimum measurement value capture, average measurement value, set-up limit measurement vale, difference measurement value, etc.

• Input the known thickness and the system may show the velocity of the inspected work-piece in real time.

• Up to 5000 sets of measurement data (refer to measurement value and acoustic value) and 100 sets of parameter data (refer to measurement value and system set-up, etc.) can be saved.

• Compact size, lightweight, low consumption and long operation period.



Compared with the CTS-30A Thickness meter, the CTS-30B model has these additional advanced functions:

• Fast Scan

• Two-Point Calibration

• Multi-Probe Selection
