دستگاه تست چسبندگی رنگ یا کراس کات ( ایکس کات X-CUT) 4 جهته ساخت کمپانی NEURTEK اسپانیا همراه با چسب مخصوص
28,000,000 17%
23,000,000 تومان
تست چسبندگي (كراس كات 4 جهته) ساخت NEURTEK اسپانیا

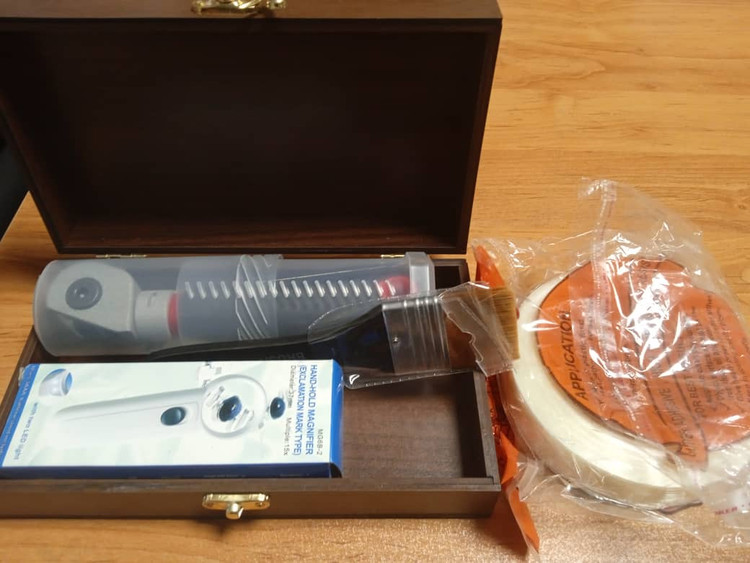

،1 دسته و1عدد تیغه گردان چهار طرفه و1حلقه چسب مخصوص50 متری3M امریکا ، آلن،
برس و ذره بین

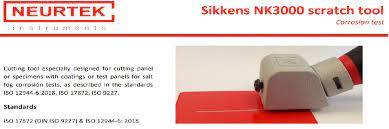

Cutting tool especially designed for cutting panel or specimens with coatings or test panels for salt fog corrosión tests, as described in the standards ISO 12944-6:2018, ISO 17872, ISO 9227.
Standards
ISO 17872 (DIN ISO 9227) & ISO 12944-6: 2018
The test can be carried out with three cutting blades:
•0.5mm blade, Daimler Chrysler
•1mm blade, Sikkens® original version
•2mm blade, complies with ISO 12944-6 standard, updated in 2018

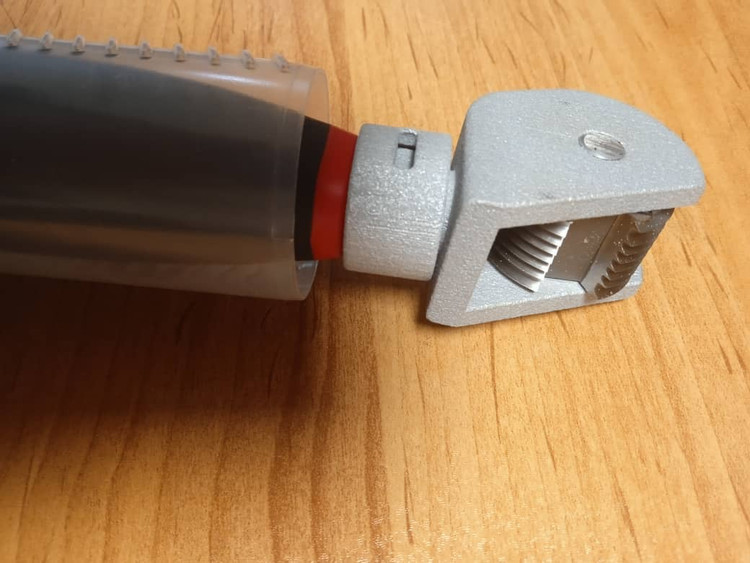

The blade is specially designed with a support that facilitates the position of the blade when making the cut. The tilting movement of the head compensates for the possible movement of the hand. All this together with the ergonomic handle makes cutting easier and requires less force.
Procedure
Make sure the panel is firmly attached.
Make a firm cut to the substrate.
The cut should reach the substrate. If it does not reach the substrate, you should check the blade, it may have worn out and need to be replaced.
How to Order
•0302111 – Cutting tool for Scratch test Sikkens NK3000 with 1mm. Blade.•0302112 - Cutting tool for Scratch test Sikkens NK3000 with 2mm. Blade.•0302113 - Cutting tool for Scratch test Sikkens NK3000 with 0,5mm. Blade.•0302114 - 1mm. Blade, Sikkens® original version.•0302115 - 2mm. Blade, complies with standard ISO 12944-6 updated in 2018.•0302116 - 0.5mm. Blade, Daimler Chrysler
